Kinemetrics Solutions

Seismic intelligence with local integration and support.

PT Cahaya Raja Ratu is listed by Kinemetrics as one of its representatives in Indonesia. CRR does not manufacture Kinemetrics products; we help clients evaluate, integrate, implement, commission, and support the appropriate solution.

Selected product portfolio

Instrumentation for the full seismic data chain.

From field sensing to high-resolution acquisition, CRR helps clients select compatible components and engineer them into reliable monitoring systems.

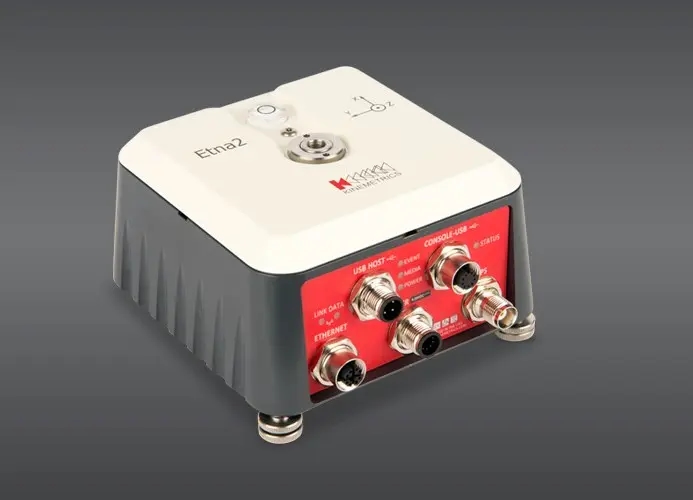

ETNA 2 Kinemetrics product

Strong-motion accelerograph

ETNA 2

Web-based three-channel strong-motion accelerograph with an internal triaxial EpiSensor deck.

  • 24-bit, 3 channels
  • DC to 200 Hz sensor bandwidth
  • 1-500 sps
  • GPS/GNSS and PTP timing
  • EEW-ready 0.1 s packets
  • IP67 enclosure

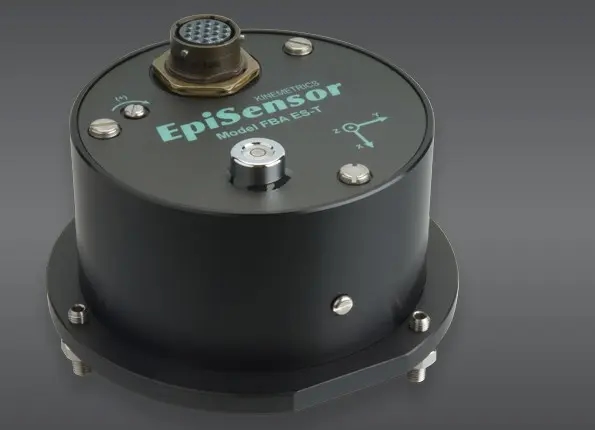

EpiSensor ES-T Kinemetrics product

Force-balance accelerometer

EpiSensor ES-T

Triaxial surface accelerometer for earthquake recording and structural-monitoring applications.

  • 155 dB+ dynamic range
  • DC to 200 Hz
  • User-selectable ±0.25g to ±4g
  • Single-ended or differential output
  • IP67 enclosure

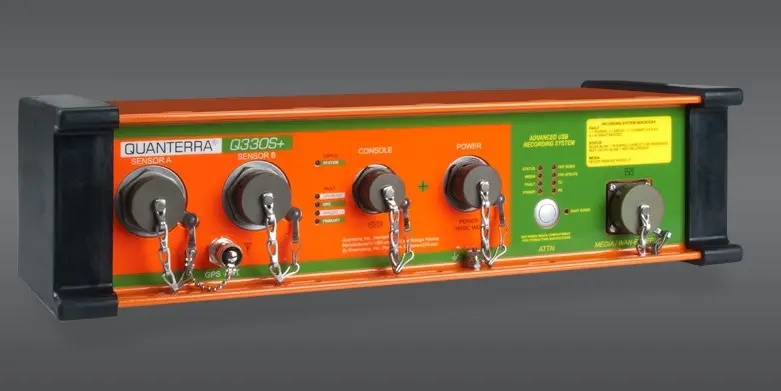

Quanterra Q330S+ Kinemetrics product

Seismic data acquisition

Quanterra Q330S+

Very-low-power, high-resolution, network-aware acquisition system for broadband seismic stations.

  • 3 or 6 channels
  • Up to 1,000 sps
  • ~138 dB typical dynamic range
  • Real-time IP telemetry
  • Dual removable USB media
  • Low-power field operation

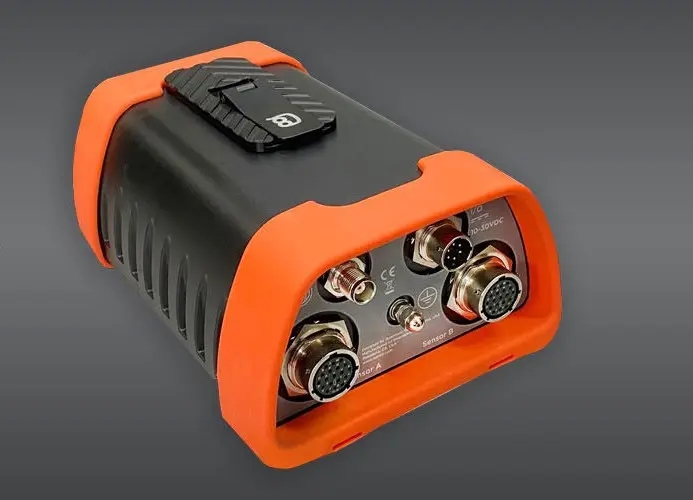

Quanterra Q8 Kinemetrics product

High-resolution seismic system

Quanterra Q8

Ultra-low-power acquisition platform designed for high-performance regional and global seismic networks.

  • 6 high-resolution channels
  • Up to 1,000 sps
  • Built-in 3-axis ±2g MEMS
  • <1 µs GPS-locked accuracy
  • Ethernet and Wi-Fi
  • IP67 or better

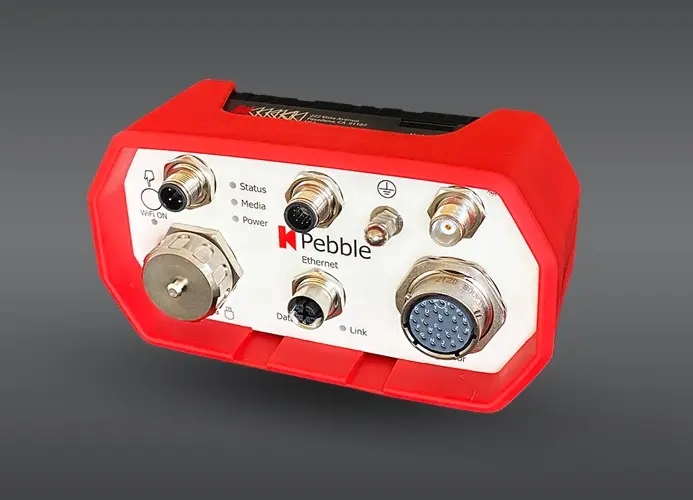

Pebble Kinemetrics product

Compact datalogger

Pebble

Compact and rugged datalogger for stand-alone recording, continuous telemetry, and field deployments.

  • Three 24-bit channels
  • 1-2,000 sps
  • GPS/GNSS and PTP timing
  • Ethernet, Wi-Fi, and USB
  • EEW-ready 0.1 s packets
  • IP67 enclosure

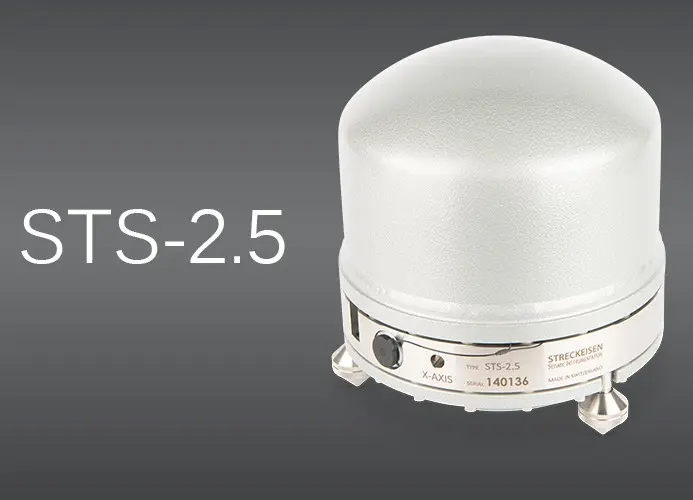

STS-2.5 Kinemetrics product

Very-broadband seismometer

STS-2.5

Portable, high-performance triaxial seismometer based on the field-proven Streckeisen broadband platform.

  • 120 s to 50 Hz response
  • 1,500 V·s/m generator constant
  • 0.45 W average power
  • -20°C to 70°C guaranteed
  • Remote monitoring and centering
  • IP67 equivalent

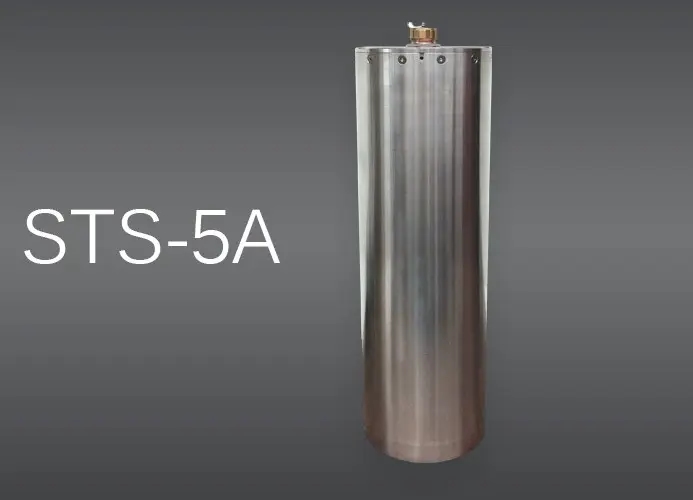

STS-5A Kinemetrics product

Borehole broadband seismometer

STS-5A

Broadband borehole sensor with motorized in-situ gimbal leveling for demanding downhole installations.

  • 120 s to 50 Hz response
  • Motorized gimbal leveling
  • RS485 communication
  • 10-30 VDC input
  • 0.45 W average power
  • Exceeds IP69

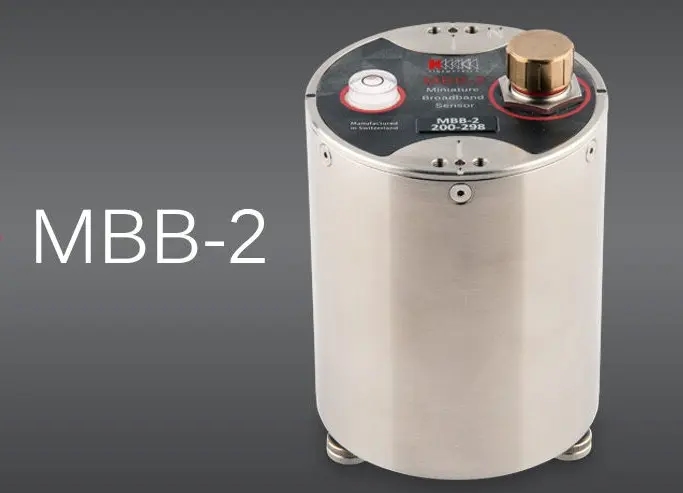

MBB-2 Kinemetrics product

Miniature broadband seismometer

MBB-2

Compact triaxial broadband sensor for vault, posthole, and immersed deployment environments.

  • 120 s to 160 Hz bandwidth
  • 155 dB at 1 Hz
  • No mass lock or centering
  • ±2.5° operable tilt
  • Typically 260 mW
  • IP68 housing

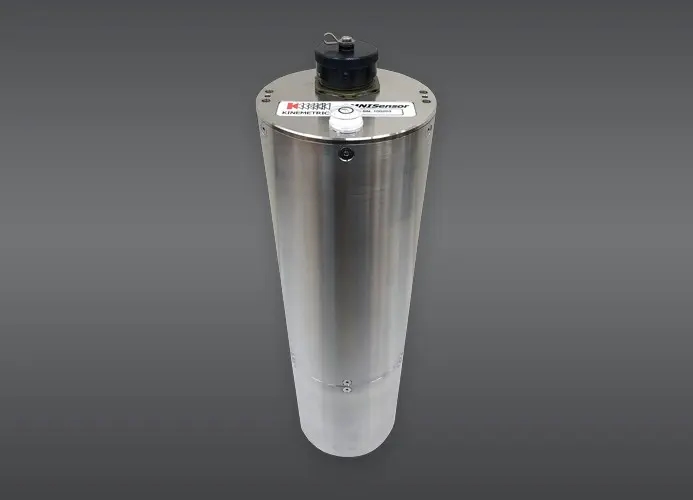

OmniSensor Kinemetrics product

Combined broadband and strong-motion sensor

OmniSensor

Co-locates MBB-2 broadband sensing and EpiSensor strong-motion measurement in one watertight package.

  • More than 205 dB combined range
  • Six mutually aligned channels
  • 120 s broadband response
  • DC to 200 Hz accelerometer
  • No mass lock or centering
  • IP68 housing

Specifications are summarized from the supplied manufacturer datasheets and may change without notice. Final configuration, compatibility, availability, and project requirements must be confirmed during technical consultation.

CRR delivery scope

From technical requirement to operational capability.

  • ConsultationTranslate monitoring objectives into technical and operational requirements.
  • IntegrationConnect instruments, communications, software, compute, and workflows.
  • ImplementationCoordinate procurement, deployment, configuration, testing, and commissioning.
  • Local supportProvide training, documentation, troubleshooting, and lifecycle assistance in Indonesia.
